ValidMind for development 2 — Start the development process

Learn how to use ValidMind for your end-to-end documentation process with our series of four introductory notebooks. In this second notebook, you'll run tests and investigate results, then add the results or evidence to your documentation.

You'll become familiar with the individual tests available in ValidMind, as well as how to run them and change parameters as necessary. Using ValidMind's repository of individual tests as building blocks helps you ensure that a record (model) is being built appropriately.

For a full list of out-of-the-box tests and descriptions, use the interactive ValidMind test sandbox.

Learn by doing

Our course tailor-made for developers new to ValidMind combines this series of notebooks with more a more in-depth introduction to the ValidMind Platform — Developer Fundamentals

Prerequisites

In order to log test results or evidence to your documentation with this notebook, you'll need to first have:

Need help with the above steps?

Refer to the first notebook in this series: 1 — Set up the ValidMind Library

Setting up

Initialize the ValidMind Library

First, let's connect up the ValidMind Library to our model we previously registered in the ValidMind Platform:

  1. On the left sidebar that appears for your model, select Getting Started and select Development from the Document drop-down menu.

  2. Click Copy snippet to clipboard.

  3. Next, load your model identifier credentials from an .env file or replace the placeholder with your own code snippet:

# Make sure the ValidMind Library is installed

%pip install -q validmind

# Load your model identifier credentials from an `.env` file

%load_ext dotenv
%dotenv .env

# Or replace with your code snippet

import validmind as vm

vm.init(
    # api_host="...",
    # api_key="...",
    # api_secret="...",
    # model="...",
    document="documentation",
)
Note: you may need to restart the kernel to use updated packages.
2026-11-20 23:00:05,193 - INFO(validmind.api_client): 🎉 Connected to ValidMind!
📊 Model: [ValidMind Academy] Model development (ID: cmalgf3qi02ce199qm3rdkl46)
📁 Document Type: model_documentation

Import sample dataset

Then, let's import the public Bank Customer Churn Prediction dataset from Kaggle.

In our below example, note that:

  • The target column, Exited has a value of 1 when a customer has churned and 0 otherwise.
  • The ValidMind Library provides a wrapper to automatically load the dataset as a Pandas DataFrame object. A Pandas Dataframe is a two-dimensional tabular data structure that makes use of rows and columns.
from validmind.datasets.classification import customer_churn as demo_dataset

print(
    f"Loaded demo dataset with: \n\n\t• Target column: '{demo_dataset.target_column}' \n\t• Class labels: {demo_dataset.class_labels}"
)

raw_df = demo_dataset.load_data()
raw_df.head()
Loaded demo dataset with:

    • Target column: 'Exited'
    • Class labels: {'0': 'Did not exit', '1': 'Exited'}
CreditScore Geography Gender Age Tenure Balance NumOfProducts HasCrCard IsActiveMember EstimatedSalary Exited
0 619 France Female 42 2 0.00 1 1 1 101348.88 1
1 608 Spain Female 41 1 83807.86 1 0 1 112542.58 0
2 502 France Female 42 8 159660.80 3 1 0 113931.57 1
3 699 France Female 39 1 0.00 2 0 0 93826.63 0
4 850 Spain Female 43 2 125510.82 1 1 1 79084.10 0

Identify qualitative tests

Next, let's say we want to do some data quality assessments by running a few individual tests.

Use the vm.tests.list_tests() function introduced by the first notebook in this series in combination with vm.tests.list_tags() and vm.tests.list_tasks() to find which prebuilt tests are relevant for data quality assessment:

  • tasks represent the kind of modeling task associated with a test. Here we'll focus on classification tasks.
  • tags are free-form descriptions providing more details about the test, for example, what category the test falls into. Here we'll focus on the data_quality tag.
# Get the list of available task types
sorted(vm.tests.list_tasks())
['classification',
 'clustering',
 'data_validation',
 'feature_extraction',
 'monitoring',
 'nlp',
 'regression',
 'residual_analysis',
 'text_classification',
 'text_generation',
 'text_qa',
 'text_summarization',
 'time_series_forecasting',
 'visualization']
# Get the list of available tags
sorted(vm.tests.list_tags())
['AUC',
 'analysis',
 'anomaly',
 'anomaly_detection',
 'bias_and_fairness',
 'binary_classification',
 'calibration',
 'categorical_data',
 'classification',
 'classification_metrics',
 'clustering',
 'conceptual_soundness',
 'correlation',
 'credit_risk',
 'data_analysis',
 'data_distribution',
 'data_quality',
 'data_validation',
 'descriptive_statistics',
 'dimensionality_reduction',
 'distribution',
 'embeddings',
 'feature_importance',
 'feature_selection',
 'few_shot',
 'forecasting',
 'frequency_analysis',
 'kmeans',
 'linear_regression',
 'llm',
 'logistic_regression',
 'metadata',
 'model_comparison',
 'model_diagnosis',
 'model_explainability',
 'model_interpretation',
 'model_performance',
 'model_predictions',
 'model_selection',
 'model_training',
 'model_validation',
 'multiclass_classification',
 'multicollinearity',
 'nlp',
 'normality',
 'numerical_data',
 'outlier',
 'outliers',
 'qualitative',
 'rag_performance',
 'ragas',
 'regression',
 'retrieval_performance',
 'robustness',
 'scorecard',
 'seasonality',
 'segment_analysis',
 'sensitivity_analysis',
 'sklearn',
 'specification',
 'stability',
 'stationarity',
 'statistical_test',
 'statistics',
 'statsmodels',
 'stress_testing',
 'tabular_data',
 'text_data',
 'threshold_optimization',
 'time_series_data',
 'uncertainty',
 'unit_root_test',
 'visualization',
 'zero_shot']

You can pass tags and tasks as parameters to the vm.tests.list_tests() function to filter the tests based on the tags and task types.

For example, to find tests related to tabular data quality for classification models, you can call list_tests() like this:

vm.tests.list_tests(task="classification", tags=["tabular_data", "data_quality"])
ID Name Description Has Figure Has Table Required Inputs Params Tags Tasks
validmind.data_validation.ClassImbalance Class Imbalance Evaluates and quantifies class distribution imbalance in a dataset used by a machine learning model.... True True ['dataset'] {'min_percent_threshold': {'type': 'int', 'default': 10}} ['tabular_data', 'binary_classification', 'multiclass_classification', 'data_quality'] ['classification']
validmind.data_validation.DescriptiveStatistics Descriptive Statistics Performs a detailed descriptive statistical analysis of both numerical and categorical data within a model's... False True ['dataset'] {} ['tabular_data', 'time_series_data', 'data_quality'] ['classification', 'regression']
validmind.data_validation.Duplicates Duplicates Tests dataset for duplicate entries, ensuring model reliability via data quality verification.... False True ['dataset'] {'min_threshold': {'type': '_empty', 'default': 1}} ['tabular_data', 'data_quality', 'text_data'] ['classification', 'regression']
validmind.data_validation.HighCardinality High Cardinality Assesses the number of unique values in categorical columns to detect high cardinality and potential overfitting.... False True ['dataset'] {'num_threshold': {'type': 'int', 'default': 100}, 'percent_threshold': {'type': 'float', 'default': 0.1}, 'threshold_type': {'type': 'str', 'default': 'percent'}} ['tabular_data', 'data_quality', 'categorical_data'] ['classification', 'regression']
validmind.data_validation.HighPearsonCorrelation High Pearson Correlation Identifies highly correlated feature pairs in a dataset suggesting feature redundancy or multicollinearity.... False True ['dataset'] {'max_threshold': {'type': 'float', 'default': 0.3}, 'top_n_correlations': {'type': 'int', 'default': 10}, 'feature_columns': {'type': 'list', 'default': None}} ['tabular_data', 'data_quality', 'correlation'] ['classification', 'regression']
validmind.data_validation.MissingValues Missing Values Evaluates dataset quality by ensuring missing value percentage across all features does not exceed a set threshold.... False True ['dataset'] {'min_percentage_threshold': {'type': 'float', 'default': 1.0}} ['tabular_data', 'data_quality'] ['classification', 'regression']
validmind.data_validation.MissingValuesBarPlot Missing Values Bar Plot Assesses the percentage and distribution of missing values in the dataset via a bar plot, with emphasis on... True False ['dataset'] {'threshold': {'type': 'int', 'default': 80}, 'fig_height': {'type': 'int', 'default': 600}} ['tabular_data', 'data_quality', 'visualization'] ['classification', 'regression']
validmind.data_validation.Skewness Skewness Evaluates the skewness of numerical data in a dataset to check against a defined threshold, aiming to ensure data... False True ['dataset'] {'max_threshold': {'type': '_empty', 'default': 1}} ['data_quality', 'tabular_data'] ['classification', 'regression']
validmind.plots.BoxPlot Box Plot Generates customizable box plots for numerical features in a dataset with optional grouping using Plotly.... True False ['dataset'] {'columns': {'type': 'Optional', 'default': None}, 'group_by': {'type': 'Optional', 'default': None}, 'width': {'type': 'int', 'default': 1800}, 'height': {'type': 'int', 'default': 1200}, 'colors': {'type': 'Optional', 'default': None}, 'show_outliers': {'type': 'bool', 'default': True}, 'title_prefix': {'type': 'str', 'default': 'Box Plot of'}} ['tabular_data', 'visualization', 'data_quality'] ['classification', 'regression', 'clustering']
validmind.plots.HistogramPlot Histogram Plot Generates customizable histogram plots for numerical features in a dataset using Plotly.... True False ['dataset'] {'columns': {'type': 'Optional', 'default': None}, 'bins': {'type': 'Union', 'default': 30}, 'color': {'type': 'str', 'default': 'steelblue'}, 'opacity': {'type': 'float', 'default': 0.7}, 'show_kde': {'type': 'bool', 'default': True}, 'normalize': {'type': 'bool', 'default': False}, 'log_scale': {'type': 'bool', 'default': False}, 'title_prefix': {'type': 'str', 'default': 'Histogram of'}, 'width': {'type': 'int', 'default': 1200}, 'height': {'type': 'int', 'default': 800}, 'n_cols': {'type': 'int', 'default': 2}, 'vertical_spacing': {'type': 'float', 'default': 0.15}, 'horizontal_spacing': {'type': 'float', 'default': 0.1}} ['tabular_data', 'visualization', 'data_quality'] ['classification', 'regression', 'clustering']
validmind.stats.DescriptiveStats Descriptive Stats Provides comprehensive descriptive statistics for numerical features in a dataset.... False True ['dataset'] {'columns': {'type': 'Optional', 'default': None}, 'include_advanced': {'type': 'bool', 'default': True}, 'confidence_level': {'type': 'float', 'default': 0.95}} ['tabular_data', 'statistics', 'data_quality'] ['classification', 'regression', 'clustering']
Want to learn more about navigating ValidMind tests?

Refer to our notebook outlining the utilities available for viewing and understanding available ValidMind tests: Explore tests

Initialize the ValidMind dataset

With the individual tests we want to run identified, the next step is to connect your data with a ValidMind Dataset object. This step is always necessary every time you want to connect a dataset to documentation and produce test results through ValidMind, but you only need to do it once per dataset.

Initialize a ValidMind dataset object using the init_dataset function from the ValidMind (vm) module. For this example, we'll pass in the following arguments:

  • dataset — The raw dataset that you want to provide as input to tests.
  • input_id — A unique identifier that allows tracking what inputs are used when running each individual test.
  • target_column — A required argument if tests require access to true values. This is the name of the target column in the dataset.
# vm_raw_dataset is now a VMDataset object that you can pass to any ValidMind test
vm_raw_dataset = vm.init_dataset(
    dataset=raw_df,
    input_id="raw_dataset",
    target_column="Exited",
)

Running tests on datasets

Now that we know how to initialize a ValidMind dataset object, we're ready to run some tests!

You run individual tests by calling the run_test function provided by the validmind.tests module. For the examples below, we'll pass in the following arguments:

  • test_id — The ID of the test to run, as seen in the ID column when you run list_tests.
  • params — A dictionary of parameters for the test. These will override any default_params set in the test definition.

Run tabular data tests

The inputs expected by a test can also be found in the test definition — let's take validmind.data_validation.DescriptiveStatistics as an example.

Note that the output of the describe_test() function below shows that this test expects a dataset as input:

vm.tests.describe_test("validmind.data_validation.DescriptiveStatistics")
▶ Test: Descriptive Statistics ('validmind.data_validation.DescriptiveStatistics')

Now, let's run a few tests to assess the quality of the dataset:

result = vm.tests.run_test(
    test_id="validmind.data_validation.DescriptiveStatistics",
    inputs={"dataset": vm_raw_dataset},
)

Descriptive Statistics

The Descriptive Statistics test evaluates the distributional characteristics of numerical and categorical variables in the dataset. The result consists of summary statistics for eight numerical variables and frequency-based summaries for two categorical variables, each reported over 8,000 observations. The numerical table presents central tendency, dispersion, and percentile values, while the categorical table reports the number of unique values and concentration in the most frequent category.

Key insights:

  • No missing values in reported fields: All numerical and categorical variables show a count of 8,000, indicating complete population coverage for the fields included in this test output.

  • Balance shows pronounced concentration at zero: Balance has a minimum of 0, a 25th percentile of 0, and a median of 97,264, indicating that at least one quarter of observations have zero balance while the remaining distribution extends to a maximum of 250,898.

  • CreditScore and Age are broadly distributed: CreditScore spans from 350 to 850 with a mean of 650.16 and median of 652, while Age ranges from 18 to 92 with a mean of 38.95 and median of 37. These variables cover wide ranges with central tendency measures that remain relatively close.

  • Tenure is bounded and centered near five years: Tenure ranges from 0 to 10, with mean 5.03 and median 5. The 90th and 95th percentiles are both 9, showing concentration near the upper end of the bounded scale.

  • Product holding is concentrated in lower counts: NumOfProducts has a mean of 1.53, a median of 1, and a 75th percentile of 2, with a maximum of 4. This indicates that most observations are concentrated between one and two products.

  • Binary indicators are unevenly distributed: HasCrCard has a mean of 0.7026, indicating that the positive class represents about 70.26% of observations, while IsActiveMember has a mean of 0.5199, indicating a more balanced split at about 51.99%.

  • Categorical concentration is moderate: Geography contains 3 unique values, with France as the top category at 4,010 observations (50.12%). Gender contains 2 unique values, with Male as the top category at 4,396 observations (54.95%).

The descriptive statistics show a complete dataset across the reported variables, with broad numerical coverage in CreditScore, Age, Balance, and EstimatedSalary and more bounded distributions in Tenure and NumOfProducts. The most distinct distributional feature is the concentration of Balance at zero through the first quartile alongside a substantially higher median, indicating a split between zero-balance observations and a wide positive balance range. Categorical variables exhibit moderate concentration in the most frequent classes, while binary indicators differ in class balance, with HasCrCard more concentrated than IsActiveMember.

Tables

Numerical Variables

Name Count Mean Std Min 25% 50% 75% 90% 95% Max
CreditScore 8000.0 650.1596 96.8462 350.0 583.0 652.0 717.0 778.0 813.0 850.0
Age 8000.0 38.9489 10.4590 18.0 32.0 37.0 44.0 53.0 60.0 92.0
Tenure 8000.0 5.0339 2.8853 0.0 3.0 5.0 8.0 9.0 9.0 10.0
Balance 8000.0 76434.0965 62612.2513 0.0 0.0 97264.0 128045.0 149545.0 162488.0 250898.0
NumOfProducts 8000.0 1.5325 0.5805 1.0 1.0 1.0 2.0 2.0 2.0 4.0
HasCrCard 8000.0 0.7026 0.4571 0.0 0.0 1.0 1.0 1.0 1.0 1.0
IsActiveMember 8000.0 0.5199 0.4996 0.0 0.0 1.0 1.0 1.0 1.0 1.0
EstimatedSalary 8000.0 99790.1880 57520.5089 12.0 50857.0 99505.0 149216.0 179486.0 189997.0 199992.0

Categorical Variables

Name Count Number of Unique Values Top Value Top Value Frequency Top Value Frequency %
Geography 8000.0 3.0 France 4010.0 50.12
Gender 8000.0 2.0 Male 4396.0 54.95
result2 = vm.tests.run_test(
    test_id="validmind.data_validation.ClassImbalance",
    inputs={"dataset": vm_raw_dataset},
    params={"min_percent_threshold": 30},
)

❌ Class Imbalance

The Class Imbalance test evaluates the distribution of target classes in the dataset by comparing each class share against a minimum percentage threshold. In this run, the target variable Exited is summarized across two classes, with results shown as class percentages and pass/fail outcomes using a 30% threshold. Class Exited = 0 represents 79.80% of rows and passes the threshold, while class Exited = 1 represents 20.20% of rows and fails. The accompanying bar chart visually reflects this difference in class prevalence.

Key insights:

  • Minority class falls below threshold: Exited = 1 accounts for 20.20% of observations, which is below the configured 30% minimum threshold and is therefore marked as Fail.
  • Majority class dominates distribution: Exited = 0 represents 79.80% of the dataset, making it nearly four times as prevalent as Exited = 1, and it is marked as Pass.
  • Binary target shows uneven class proportions: The two-class target distribution is materially skewed, with a gap of 59.60 percentage points between the majority and minority classes.

The results show that the target distribution is uneven under the configured test parameter of 30%. One class satisfies the minimum representation threshold while the other does not, and the observed 79.80% versus 20.20% split indicates that class prevalence is concentrated in Exited = 0. Collectively, the table and chart document a clear imbalance in the binary target distribution according to this test definition.

Parameters:

{
  "min_percent_threshold": 30
}


Tables

Exited Class Imbalance

Exited Percentage of Rows (%) Pass/Fail
0 79.80% Pass
1 20.20% Fail

Figures

ValidMind Figure validmind.data_validation.ClassImbalance:f506

The output above shows that the validmind.data_validation.ClassImbalance test did not pass according to the value we set for min_percent_threshold.

To address this issue, we'll re-run the test on some processed data. In this case let's apply a very simple rebalancing technique to the dataset:

import pandas as pd

raw_copy_df = raw_df.sample(frac=1)  # Create a copy of the raw dataset

# Create a balanced dataset with the same number of exited and not exited customers
exited_df = raw_copy_df.loc[raw_copy_df["Exited"] == 1]
not_exited_df = raw_copy_df.loc[raw_copy_df["Exited"] == 0].sample(n=exited_df.shape[0])

balanced_raw_df = pd.concat([exited_df, not_exited_df])
balanced_raw_df = balanced_raw_df.sample(frac=1, random_state=42)

With this new balanced dataset, you can re-run the individual test to see if it now passes the class imbalance test requirement.

As this is technically a different dataset, remember to first initialize a new ValidMind Dataset object to pass in as input as required by run_test():

# Register new data and now 'balanced_raw_dataset' is the new dataset object of interest
vm_balanced_raw_dataset = vm.init_dataset(
    dataset=balanced_raw_df,
    input_id="balanced_raw_dataset",
    target_column="Exited",
)
# Pass the initialized `balanced_raw_dataset` as input into the test run
result = vm.tests.run_test(
    test_id="validmind.data_validation.ClassImbalance",
    inputs={"dataset": vm_balanced_raw_dataset},
    params={"min_percent_threshold": 30},
)

✅ Class Imbalance

The Class Imbalance test evaluates the distribution of target classes in the dataset by measuring the percentage share of each class and comparing it with the configured minimum threshold. In this run, the target variable Exited is summarized across two classes, with the results table and bar chart showing the proportion of records assigned to each class. The minimum percentage threshold for this test was set to 30%, and the output reports both class-level percentages and pass/fail status.

Key insights:

  • Even class distribution observed: The Exited target is split evenly between class 0 and class 1, with each representing 50.00% of rows in the dataset.
  • All classes exceed threshold: Both classes are above the configured 30% minimum percentage threshold and are marked as Pass in the test output.
  • No class-level disparity in proportions: The visual and tabular results show identical class shares, with no difference in representation between the two target classes.

The results indicate that the target distribution is balanced across the two observed classes under the configured threshold. Both classes have equal representation at 50.00%, and neither class falls below the minimum percentage criterion used by the test. This output shows no observed class imbalance in the Exited target for the evaluated dataset.

Parameters:

{
  "min_percent_threshold": 30
}


Tables

Exited Class Imbalance

Exited Percentage of Rows (%) Pass/Fail
0 50.00% Pass
1 50.00% Pass

Figures

ValidMind Figure validmind.data_validation.ClassImbalance:7f43

Utilize test output

You can utilize the output from a ValidMind test for further use, for example, if you want to remove highly correlated features. Removing highly correlated features helps make the model simpler, more stable, and easier to understand.

Below we demonstrate how to retrieve the list of features with the highest correlation coefficients and use them to reduce the final list of features for modeling.

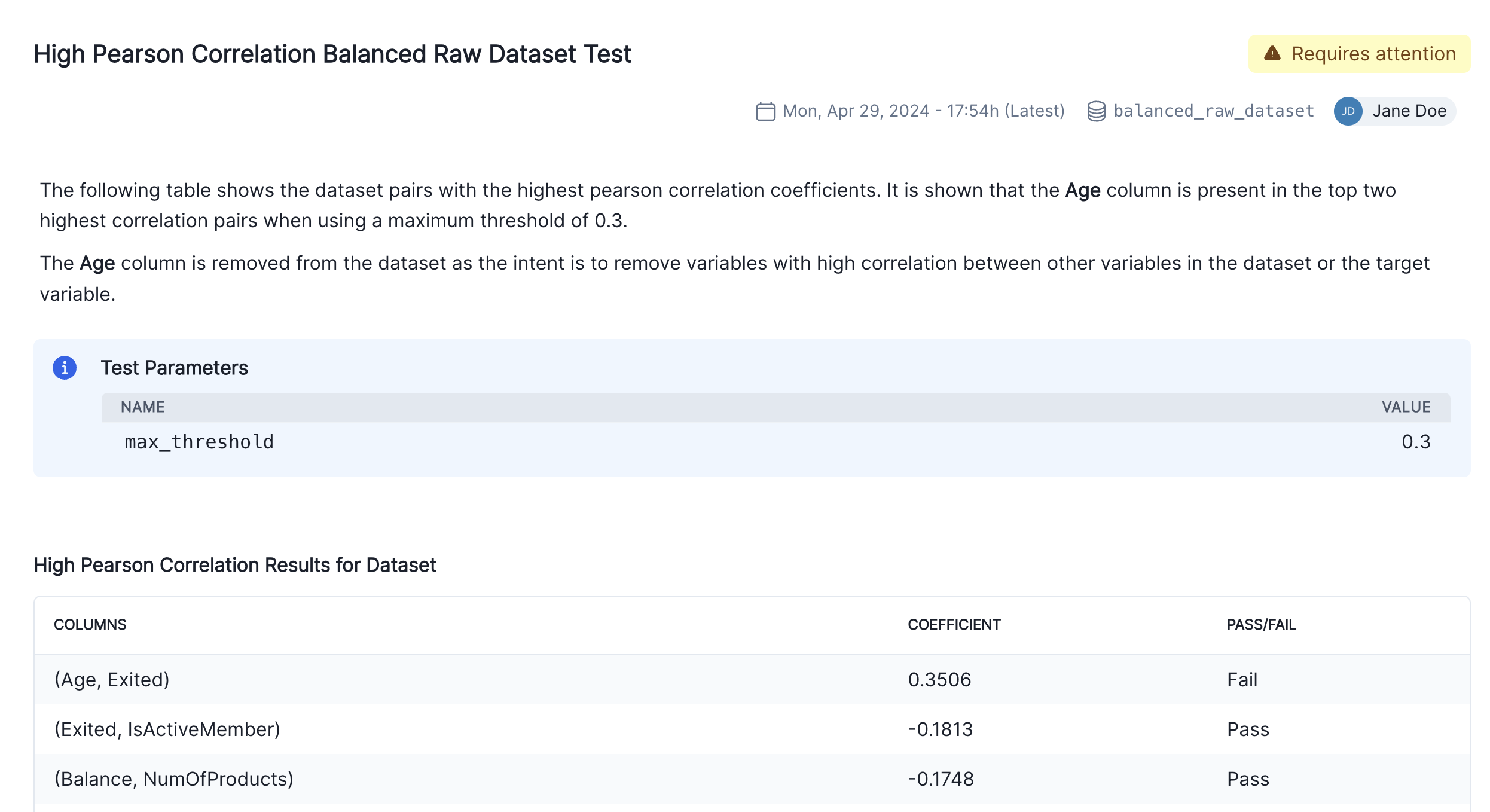

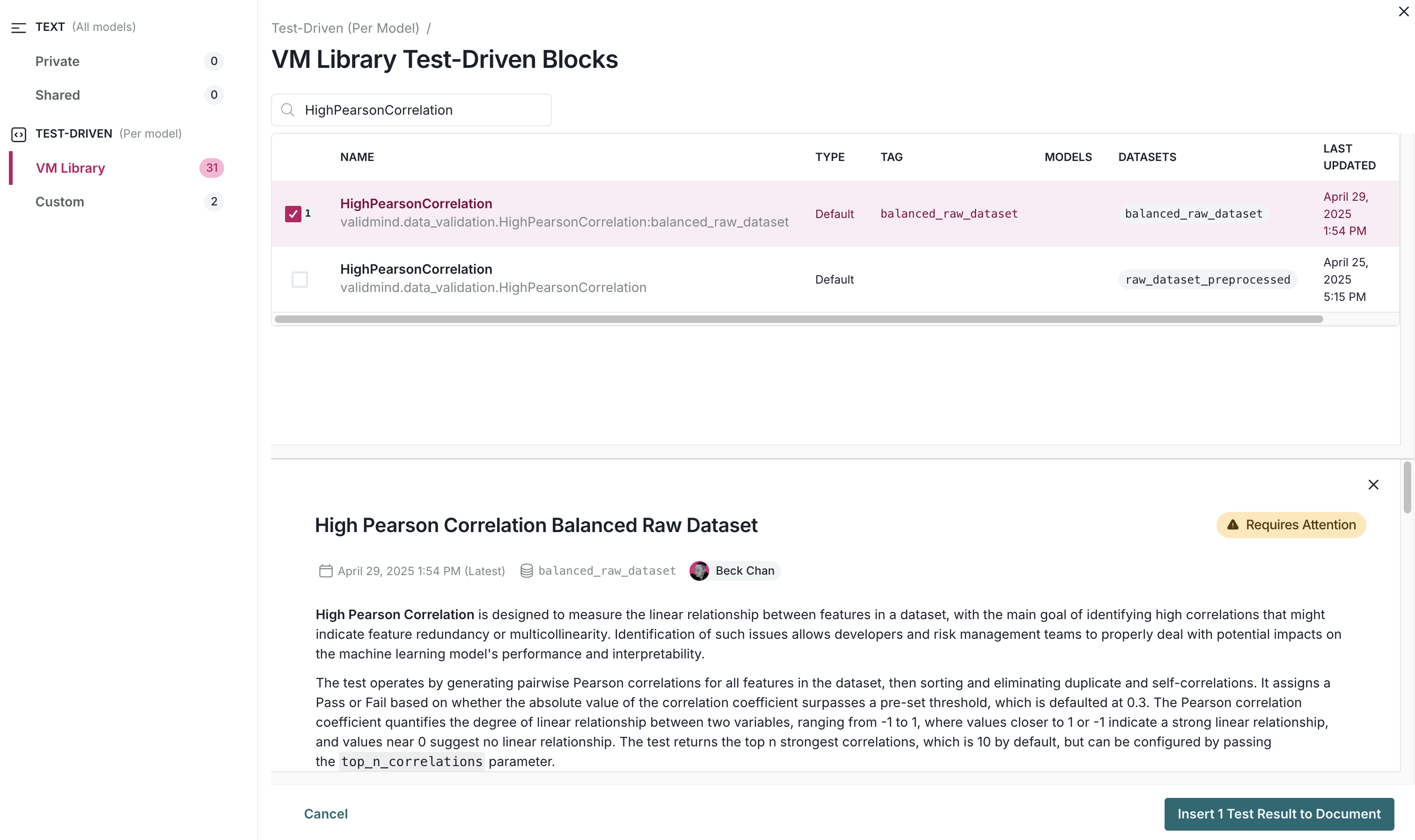

First, we'll run validmind.data_validation.HighPearsonCorrelation with the balanced_raw_dataset we initialized previously as input as is for comparison with later runs:

corr_result = vm.tests.run_test(
    test_id="validmind.data_validation.HighPearsonCorrelation",
    params={"max_threshold": 0.3},
    inputs={"dataset": vm_balanced_raw_dataset},
)

❌ High Pearson Correlation

The High Pearson Correlation test evaluates pairwise linear relationships between features to identify highly correlated feature pairs that may indicate redundancy or multicollinearity. The result table reports the top correlations by absolute magnitude, along with the associated Pearson coefficient and a Pass/Fail assessment based on the configured threshold of 0.3. Across the ten reported pairs, coefficients range from -0.1911 to 0.3522, and only one pair exceeds the threshold.

Key insights:

  • Single threshold breach identified: The only failing pair is (Age, Exited) with a Pearson correlation coefficient of 0.3522, which exceeds the configured threshold of 0.3.
  • Remaining correlations are weak: The other nine reported pairs all pass the test, with absolute correlation values at or below 0.1911, indicating substantially weaker linear relationships than the failing pair.
  • Largest non-failing relationships are limited: The strongest passing correlations are (Balance, NumOfProducts) at -0.1911 and (IsActiveMember, Exited) at -0.1892, both remaining well below the failure threshold.
  • Reported correlations are predominantly small: Several additional pairs, including (Balance, Exited) at 0.1484, (NumOfProducts, Exited) at -0.0572, and (CreditScore, Age) at -0.0357, show low-magnitude linear association in the reported output.

The reported correlation structure is concentrated around one materially larger relationship, with Age and Exited as the only pair exceeding the test threshold. All other listed feature pairs remain below 0.3, and most are small in magnitude. Taken together, the output shows limited evidence of high pairwise linear dependence within the reported top correlations, aside from the single failing pair.

Parameters:

{
  "max_threshold": 0.3
}


Tables

Columns Coefficient Pass/Fail
(Age, Exited) 0.3522 Fail
(Balance, NumOfProducts) -0.1911 Pass
(IsActiveMember, Exited) -0.1892 Pass
(Balance, Exited) 0.1484 Pass
(NumOfProducts, Exited) -0.0572 Pass
(NumOfProducts, IsActiveMember) 0.0534 Pass
(Age, Balance) 0.0487 Pass
(CreditScore, EstimatedSalary) -0.0486 Pass
(Age, NumOfProducts) -0.0443 Pass
(CreditScore, Age) -0.0357 Pass

The output above shows that the test did not pass according to the value we set for max_threshold.

corr_result is an object of type TestResult. We can inspect the result object to see what the test has produced:

print(type(corr_result))
print("Result ID: ", corr_result.result_id)
print("Params: ", corr_result.params)
print("Passed: ", corr_result.passed)
print("Tables: ", corr_result.tables)
<class 'validmind.vm_models.result.result.TestResult'>
Result ID:  validmind.data_validation.HighPearsonCorrelation
Params:  {'max_threshold': 0.3}
Passed:  False
Tables:  [ResultTable]

Let's remove the highly correlated features and create a new VM dataset object.

We'll begin by checking out the table in the result and extracting a list of features that failed the test:

# Extract table from `corr_result.tables`
features_df = corr_result.tables[0].data
features_df
Columns Coefficient Pass/Fail
0 (Age, Exited) 0.3522 Fail
1 (Balance, NumOfProducts) -0.1911 Pass
2 (IsActiveMember, Exited) -0.1892 Pass
3 (Balance, Exited) 0.1484 Pass
4 (NumOfProducts, Exited) -0.0572 Pass
5 (NumOfProducts, IsActiveMember) 0.0534 Pass
6 (Age, Balance) 0.0487 Pass
7 (CreditScore, EstimatedSalary) -0.0486 Pass
8 (Age, NumOfProducts) -0.0443 Pass
9 (CreditScore, Age) -0.0357 Pass
# Extract list of features that failed the test
high_correlation_features = features_df[features_df["Pass/Fail"] == "Fail"]["Columns"].tolist()
high_correlation_features
['(Age, Exited)']

Next, extract the feature names from the list of strings (example: (Age, Exited) > Age):

high_correlation_features = [feature.split(",")[0].strip("()") for feature in high_correlation_features]
high_correlation_features
['Age']

Now, it's time to re-initialize the dataset with the highly correlated features removed.

Note the use of a different input_id. This allows tracking the inputs used when running each individual test.

# Remove the highly correlated features from the dataset
balanced_raw_no_age_df = balanced_raw_df.drop(columns=high_correlation_features)

# Re-initialize the dataset object
vm_raw_dataset_preprocessed = vm.init_dataset(
    dataset=balanced_raw_no_age_df,
    input_id="raw_dataset_preprocessed",
    target_column="Exited",
)

Re-running the test with the reduced feature set should pass the test:

corr_result = vm.tests.run_test(
    test_id="validmind.data_validation.HighPearsonCorrelation",
    params={"max_threshold": 0.3},
    inputs={"dataset": vm_raw_dataset_preprocessed},
)

✅ High Pearson Correlation

The High Pearson Correlation test evaluates the linear relationship between feature pairs to identify potentially redundant variables or concentrated correlation structure within the dataset. The result table lists the top 10 pairwise Pearson correlations, showing the feature pair, correlation coefficient, and pass/fail status against the configured absolute threshold of 0.3. The reported coefficients range from -0.1911 to 0.1484, and all listed pairs are marked as Pass.

Key insights:

  • No pair exceeds threshold: All reported absolute correlation coefficients remain below the 0.3 threshold. Every feature pair in the output is classified as Pass.

  • Strongest relationship is modest: The largest absolute correlation is between Balance and NumOfProducts at -0.1911. This is the highest-magnitude relationship in the reported output, but it remains well below the test threshold.

  • Exited shows limited linear association: Correlations involving Exited are small in magnitude across the reported pairs, including Balance at 0.1484, IsActiveMember at -0.1892, NumOfProducts at -0.0572, and CreditScore at -0.0353. These values indicate weak linear relationships within the reported results.

  • Top correlations are concentrated near zero: Several of the listed coefficients are close to zero, including Tenure–EstimatedSalary at 0.0282, Balance–EstimatedSalary at 0.0257, and Tenure–IsActiveMember at -0.0323. This indicates limited linear dependence among the reported feature pairs.

The reported correlation structure shows no high pairwise Pearson correlations under the configured threshold. The highest observed absolute coefficient is modest, and the remaining listed relationships are weak and clustered near zero. Collectively, the test output indicates limited pairwise linear association among the top reported feature combinations.

Parameters:

{
  "max_threshold": 0.3
}


Tables

Columns Coefficient Pass/Fail
(Balance, NumOfProducts) -0.1911 Pass
(IsActiveMember, Exited) -0.1892 Pass
(Balance, Exited) 0.1484 Pass
(NumOfProducts, Exited) -0.0572 Pass
(NumOfProducts, IsActiveMember) 0.0534 Pass
(CreditScore, EstimatedSalary) -0.0486 Pass
(CreditScore, Exited) -0.0353 Pass
(Tenure, IsActiveMember) -0.0323 Pass
(Tenure, EstimatedSalary) 0.0282 Pass
(Balance, EstimatedSalary) 0.0257 Pass

You can also plot the correlation matrix to visualize the new correlation between features:

corr_result = vm.tests.run_test(
    test_id="validmind.data_validation.PearsonCorrelationMatrix",
    inputs={"dataset": vm_raw_dataset_preprocessed},
)

Pearson Correlation Matrix

The PearsonCorrelationMatrix test evaluates linear dependency between numerical variables by measuring pairwise Pearson correlation coefficients and presenting the results in a heat map. The matrix covers CreditScore, Tenure, Balance, NumOfProducts, HasCrCard, IsActiveMember, EstimatedSalary, and Exited, with coefficients ranging from -0.19 to 1.0 including the diagonal. Off-diagonal values are concentrated near zero, and the largest observed non-diagonal magnitudes are -0.19 and 0.15. The plot therefore provides a compact view of the strength and direction of linear relationships across the numerical variables in the dataset.

Key insights:

  • Correlations are uniformly low: All non-diagonal correlation coefficients are small in magnitude, with the observed range running from -0.19 to 0.15. No pairwise relationship approaches the 0.7 absolute threshold highlighted by the test.

  • Largest negative relationships are limited: The most negative correlations are Balance with NumOfProducts (-0.19) and IsActiveMember with Exited (-0.19). These represent the strongest inverse linear relationships in the matrix, but both remain weak in magnitude.

  • Exited shows weak associations: Exited has correlations of 0.15 with Balance, -0.19 with IsActiveMember, -0.06 with NumOfProducts, -0.04 with CreditScore, and approximately -0.01 with Tenure, HasCrCard, and EstimatedSalary. This indicates that its linear relationships with the other variables are limited.

  • Most feature pairs are near zero: Many variable pairs, including CreditScore with Tenure, CreditScore with NumOfProducts, EstimatedSalary with IsActiveMember, and CreditScore with IsActiveMember, are reported at or approximately 0.0. The matrix shows only minimal linear dependence across most predictors.

The correlation structure is sparse, with pairwise linear relationships remaining weak throughout the dataset. The strongest observed off-diagonal coefficients are limited to modest negative values of -0.19 and a modest positive value of 0.15, while most other coefficients cluster near zero. Overall, the result indicates limited linear redundancy among the numerical variables included in the matrix.

Figures

ValidMind Figure validmind.data_validation.PearsonCorrelationMatrix:ba99

Documenting test results

Now that we've done some analysis on two different datasets, we can use ValidMind to easily document why certain things were done to our raw data with testing to support it.

Every test result returned by the run_test() function has a .log() method that can be used to send the test results to the ValidMind Platform:

  • When using run_documentation_tests(), documentation sections will be automatically populated with the results of all tests registered in the documentation template.
  • When logging individual test results to the platform, you'll need to manually add those results to the desired section of the documentation.

To demonstrate how to add test results to your documentation, we'll populate the entire Data Preparation section of the documentation using the clean vm_raw_dataset_preprocessed dataset as input, and then document an additional individual result for the highly correlated dataset vm_balanced_raw_dataset.

Run and log multiple tests

run_documentation_tests() allows you to run multiple tests at once and automatically log the results to your documentation. Below, we'll run the tests using the previously initialized vm_raw_dataset_preprocessed as input — this will populate the entire Data Preparation section for every test that is part of the documentation template.

For this example, we'll pass in the following arguments:

  • inputs: Any inputs to be passed to the tests.
  • config: A dictionary <test_id>:<test_config> that allows configuring each test individually. Each test config requires the following:
    • params: Individual test parameters.
    • inputs: Individual test inputs. This overrides any inputs passed from the run_documentation_tests() function.

When including explicit configuration for individual tests, you'll need to specify the inputs even if they mirror what is included in your global configuration.

# Individual test config with inputs specified
test_config = {
    "validmind.data_validation.ClassImbalance": {
        "params": {"min_percent_threshold": 30},
        "inputs": {"dataset": vm_raw_dataset_preprocessed},
    },
    "validmind.data_validation.HighPearsonCorrelation": {
        "params": {"max_threshold": 0.3},
        "inputs": {"dataset": vm_raw_dataset_preprocessed},
    },
}

# Global test config
tests_suite = vm.run_documentation_tests(
    inputs={
        "dataset": vm_raw_dataset_preprocessed,
    },
    config=test_config,
    section=["data_preparation"],
)
Test suite complete!
26/26 (100.0%)

Test Suite Results: Binary Classification V2


Check out the updated documentation on ValidMind.

Template for binary classification models.

▶ Data Preparation

Run and log an individual test

Next, we'll use the previously initialized vm_balanced_raw_dataset (that still has a highly correlated Age column) as input to run an individual test, then log the result to the ValidMind Platform.

When running individual tests, you can use a custom result_id to tag the individual result with a unique identifier:

  • This result_id can be appended to test_id with a : separator.
  • The balanced_raw_dataset result identifier will correspond to the balanced_raw_dataset input, the dataset that still has the Age column.
result = vm.tests.run_test(
    test_id="validmind.data_validation.HighPearsonCorrelation:balanced_raw_dataset",
    params={"max_threshold": 0.3},
    inputs={"dataset": vm_balanced_raw_dataset},
)
result.log()

❌ High Pearson Correlation Balanced Raw Dataset

The High Pearson Correlation test evaluates pairwise linear relationships among features to identify potentially redundant or highly collinear variable pairs. The result table reports the top correlations observed in the balanced raw dataset, listing each feature pair, its Pearson correlation coefficient, and its pass/fail status against the configured absolute threshold of 0.3. The reported coefficients range from -0.1911 to 0.3522, with one pair exceeding the threshold and the remaining listed pairs falling below it.

Key insights:

  • One pair exceeds threshold: The correlation between Age and Exited is 0.3522, which is the only reported pair classified as Fail under the 0.3 threshold.
  • All other reported pairs pass: The remaining nine listed feature pairs have absolute correlation values below 0.3, and all are marked Pass.
  • Strongest passing correlation is modest: The largest absolute correlation among passing pairs is -0.1911 for Balance and NumOfProducts, followed by -0.1892 for IsActiveMember and Exited.
  • Most reported relationships are weak: Aside from the Age–Exited pair, the reported coefficients are all below 0.2 in absolute value, including 0.1484 for Balance and Exited and several values close to zero.

Overall, the reported correlation structure is limited, with only one feature pair breaching the configured threshold and the rest of the top-listed relationships remaining weak in magnitude. The most prominent observed linear relationship is between Age and Exited, while the remaining reported pairs show comparatively low pairwise dependence based on the Pearson coefficients provided.

Parameters:

{
  "max_threshold": 0.3
}


Tables

Columns Coefficient Pass/Fail
(Age, Exited) 0.3522 Fail
(Balance, NumOfProducts) -0.1911 Pass
(IsActiveMember, Exited) -0.1892 Pass
(Balance, Exited) 0.1484 Pass
(NumOfProducts, Exited) -0.0572 Pass
(NumOfProducts, IsActiveMember) 0.0534 Pass
(Age, Balance) 0.0487 Pass
(CreditScore, EstimatedSalary) -0.0486 Pass
(Age, NumOfProducts) -0.0443 Pass
(CreditScore, Age) -0.0357 Pass
2026-11-20 23:01:15,165 - INFO(validmind.vm_models.result.result): Test driven block with result_id validmind.data_validation.HighPearsonCorrelation:balanced_raw_dataset does not exist in model's document
Note the output returned indicating that a test-driven block doesn't currently exist in your documentation for this particular test ID.

That's expected, as when we run individual tests the results logged need to be manually added to your documentation within the ValidMind Platform.

Add individual test results to documentation

With the test results logged, let's head to the model we connected to at the beginning of this notebook and insert our test results into the documentation (Learn more: Work with test results):

  1. From the Inventory in the ValidMind Platform, go to the model you connected to earlier.

  2. In the left sidebar that appears for your model, click Development under Documents.

  3. Locate the Data Preparation section and click on 2.3. Correlations and Interactions to expand that section.

  4. Hover under the Pearson Correlation Matrix content block until a horizontal dashed line with a + button appears, indicating that you can insert a new block.

    Screenshot showing insert block button in model documentation

  5. Click + and then select Test-Driven Block under FROM LIBRARY:

    • Click on VM Library under TEST-DRIVEN in the left sidebar.
    • In the search bar, type in HighPearsonCorrelation.
    • Select HighPearsonCorrelation:balanced_raw_dataset as the test.

    A preview of the test gets shown:

    Screenshot showing the HighPearsonCorrelation test selected

  6. Finally, click Insert 1 Test Result to Document to add the test result to the documentation.

    Confirm that the individual results for the high correlation test has been correctly inserted into section 2.3. Correlations and Interactions of the documentation.

  7. Finalize the documentation by editing the test result's description block to explain the changes you made to the raw data and the reasons behind them as shown in the screenshot below:

    Screenshot showing the inserted High Pearson Correlation block

Running model evaluation tests

So far, we've focused on the data assessment and pre-processing that usually occurs prior to any models being built. Now, let's instead assume we have already built a model and we want to incorporate some model results into our documentation.

Train simple logistic regression model

Using ValidMind tests, we'll train a simple logistic regression model on our dataset and evaluate its performance by using the LogisticRegression class from the sklearn.linear_model.

To start, let's grab the first few rows from the balanced_raw_no_age_df dataset with the highly correlated features removed we initialized earlier:

balanced_raw_no_age_df.head()
CreditScore Geography Gender Tenure Balance NumOfProducts HasCrCard IsActiveMember EstimatedSalary Exited
5461 740 France Male 1 129574.98 1 1 1 123300.38 0
741 694 Spain Male 0 107042.74 1 1 1 102284.20 0
3541 683 Germany Female 0 138171.10 2 1 1 188203.58 0
498 583 Germany Female 6 115988.86 1 1 0 57553.98 1
6994 634 Spain Male 10 0.00 2 1 0 30772.86 1

Before training the model, we need to encode the categorical features in the dataset:

  • Use the OneHotEncoder class from the sklearn.preprocessing module to encode the categorical features.
  • The categorical features in the dataset are Geography and Gender.
balanced_raw_no_age_df = pd.get_dummies(
    balanced_raw_no_age_df, columns=["Geography", "Gender"], drop_first=True
)
balanced_raw_no_age_df.head()
CreditScore Tenure Balance NumOfProducts HasCrCard IsActiveMember EstimatedSalary Exited Geography_Germany Geography_Spain Gender_Male
5461 740 1 129574.98 1 1 1 123300.38 0 False False True
741 694 0 107042.74 1 1 1 102284.20 0 False True True
3541 683 0 138171.10 2 1 1 188203.58 0 True False False
498 583 6 115988.86 1 1 0 57553.98 1 True False False
6994 634 10 0.00 2 1 0 30772.86 1 False True True

We'll split our preprocessed dataset into training and testing, to help assess how well the model generalizes to unseen data:

  • We start by dividing our balanced_raw_no_age_df dataset into training and test subsets using train_test_split, with 80% of the data allocated to training (train_df) and 20% to testing (test_df).
  • From each subset, we separate the features (all columns except "Exited") into X_train and X_test, and the target column ("Exited") into y_train and y_test.
from sklearn.model_selection import train_test_split

train_df, test_df = train_test_split(balanced_raw_no_age_df, test_size=0.20)

X_train = train_df.drop("Exited", axis=1)
y_train = train_df["Exited"]
X_test = test_df.drop("Exited", axis=1)
y_test = test_df["Exited"]

Then using GridSearchCV, we'll find the best-performing hyperparameters or settings and save them:

from sklearn.linear_model import LogisticRegression

# Logistic Regression grid params
log_reg_params = {
    "penalty": ["l1", "l2"],
    "C": [0.001, 0.01, 0.1, 1, 10, 100, 1000],
    "solver": ["liblinear"],
}

# Grid search for Logistic Regression
from sklearn.model_selection import GridSearchCV

grid_log_reg = GridSearchCV(LogisticRegression(), log_reg_params)
grid_log_reg.fit(X_train, y_train)

# Logistic Regression best estimator
log_reg = grid_log_reg.best_estimator_

Initialize ValidMind datasets

The last step for evaluating the model's performance is to initialize the ValidMind Dataset and Model objects in preparation for assigning model predictions to each dataset.

# Initialize the datasets into their own dataset objects
vm_train_ds = vm.init_dataset(
    input_id="train_dataset_final",
    dataset=train_df,
    target_column="Exited",
)

vm_test_ds = vm.init_dataset(
    input_id="test_dataset_final",
    dataset=test_df,
    target_column="Exited",
)

Initialize a ValidMind model

You'll also need to initialize a ValidMind model object (vm_model) that can be passed to other functions for analysis and tests on the data for each of our three models.

  • Despite the naming convention, ValidMind model objects can be any type of record you want to test, document, validate, or monitor with the ValidMind Library.
  • From classical statistical and machine learning models, to generative and agentic AI systems and more, the ValidMind model object provides a consistent wrapper around your record so it can be passed as a unified input to any ValidMind test or test suite, with results sent directly to the ValidMind Platform.

Initialize your model object with vm.init_model():

# Register the model
vm_model = vm.init_model(log_reg, input_id="log_reg_model_v1")

Assign predictions

Once the model has been registered you can assign predictions to the training and testing datasets.

  • The assign_predictions() method from the Dataset object can link existing predictions to any number of models.
  • This method links the model's class prediction values and probabilities to our vm_train_ds and vm_test_ds datasets.

If no prediction values are passed, the method will compute predictions automatically:

vm_train_ds.assign_predictions(model=vm_model)
vm_test_ds.assign_predictions(model=vm_model)
2026-11-20 23:01:16,351 - INFO(validmind.vm_models.dataset.utils): Running predict_proba()... This may take a while
2026-11-20 23:01:16,352 - INFO(validmind.vm_models.dataset.utils): Done running predict_proba()
2026-11-20 23:01:16,352 - INFO(validmind.vm_models.dataset.utils): Running predict()... This may take a while
2026-11-20 23:01:16,355 - INFO(validmind.vm_models.dataset.utils): Done running predict()
2026-11-20 23:01:16,357 - INFO(validmind.vm_models.dataset.utils): Running predict_proba()... This may take a while
2026-11-20 23:01:16,358 - INFO(validmind.vm_models.dataset.utils): Done running predict_proba()
2026-11-20 23:01:16,358 - INFO(validmind.vm_models.dataset.utils): Running predict()... This may take a while
2026-11-20 23:01:16,360 - INFO(validmind.vm_models.dataset.utils): Done running predict()

Run the model evaluation tests

In this next example, we'll focus on running the tests within the Model Development section of the documentation. Only tests associated with this section will be executed, and the corresponding results will be updated in the documentation.

  • Note the additional config that is passed to run_documentation_tests() — this allows you to override inputs or params in certain tests.
  • In our case, we want to explicitly use the vm_train_ds for the validmind.model_validation.sklearn.ClassifierPerformance:in_sample test, since it's supposed to run on the training dataset and not the test dataset.
test_config = {
    "validmind.model_validation.sklearn.ClassifierPerformance:in_sample": {
        "inputs": {
            "dataset": vm_train_ds,
            "model": vm_model,
        },
    }
}
results = vm.run_documentation_tests(
    section=["model_development"],
    inputs={
        "dataset": vm_test_ds,  # Any test that requires a single dataset will use vm_test_ds
        "model": vm_model,
        "datasets": (
            vm_train_ds,
            vm_test_ds,
        ),  # Any test that requires multiple datasets will use vm_train_ds and vm_test_ds
    },
    config=test_config,
)
Test suite complete!
34/34 (100.0%)

Test Suite Results: Binary Classification V2


Check out the updated documentation on ValidMind.

Template for binary classification models.

▶ Model Development

In summary

In this second notebook, you learned how to:

Next steps

Integrate custom tests

Now that you're familiar with the basics of using the ValidMind Library to run and log tests to provide evidence for your documentation, let's learn how to incorporate your own custom tests into ValidMind: 3 — Integrate custom tests


Copyright © 2023-2026 ValidMind Inc. All rights reserved.
Refer to LICENSE for details.
SPDX-License-Identifier: AGPL-3.0 AND ValidMind Commercial
